開發背景
隨著智能手機,平板筆電,穿戴等不斷升級,外形設計上追求小型化,薄型化,低損耗,低電阻、小尺寸電感帶來更廣泛的應用需求。
產品特點
采用低損耗高密度金屬材料;
采用熱噴涂技術,電感表面致密性好;
閉合磁路設計,更好的抗電磁干擾;
超低直流電阻DCR,交流電阻ACR。
應用領域
智能手機、平板電腦、筆電、智能穿戴、VR、WiFi模組、集成模組。

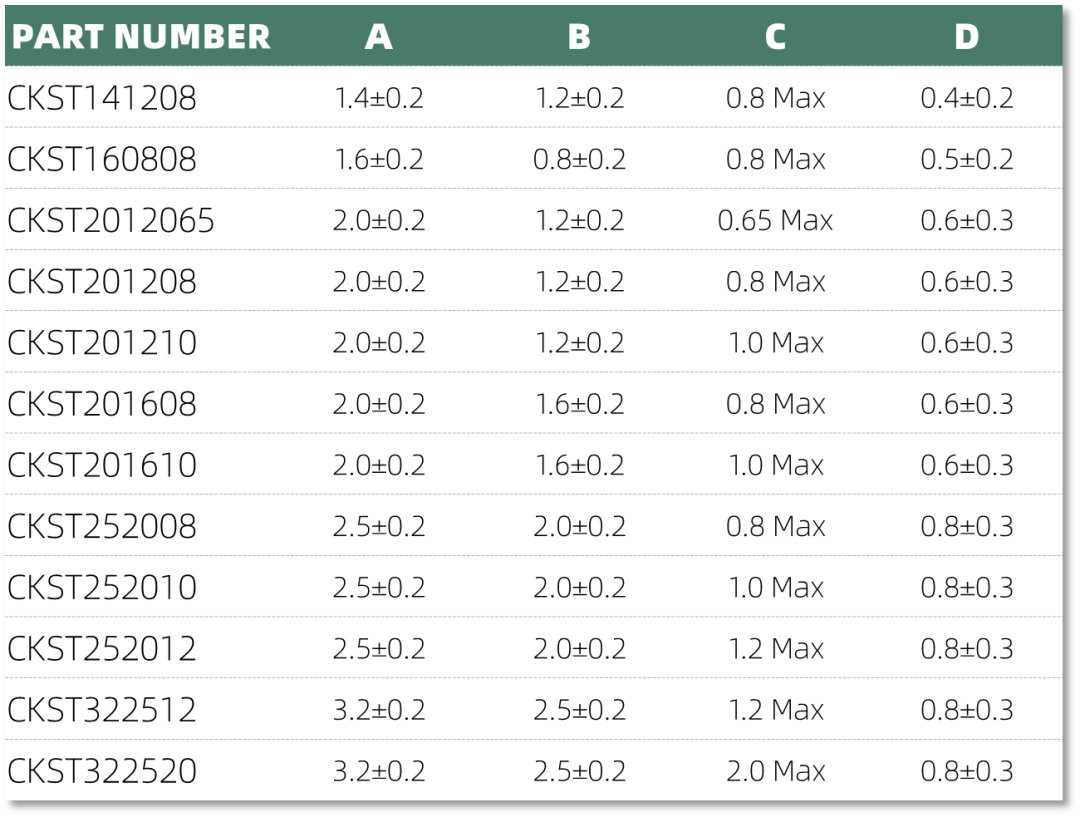

產品尺寸
unit:mm

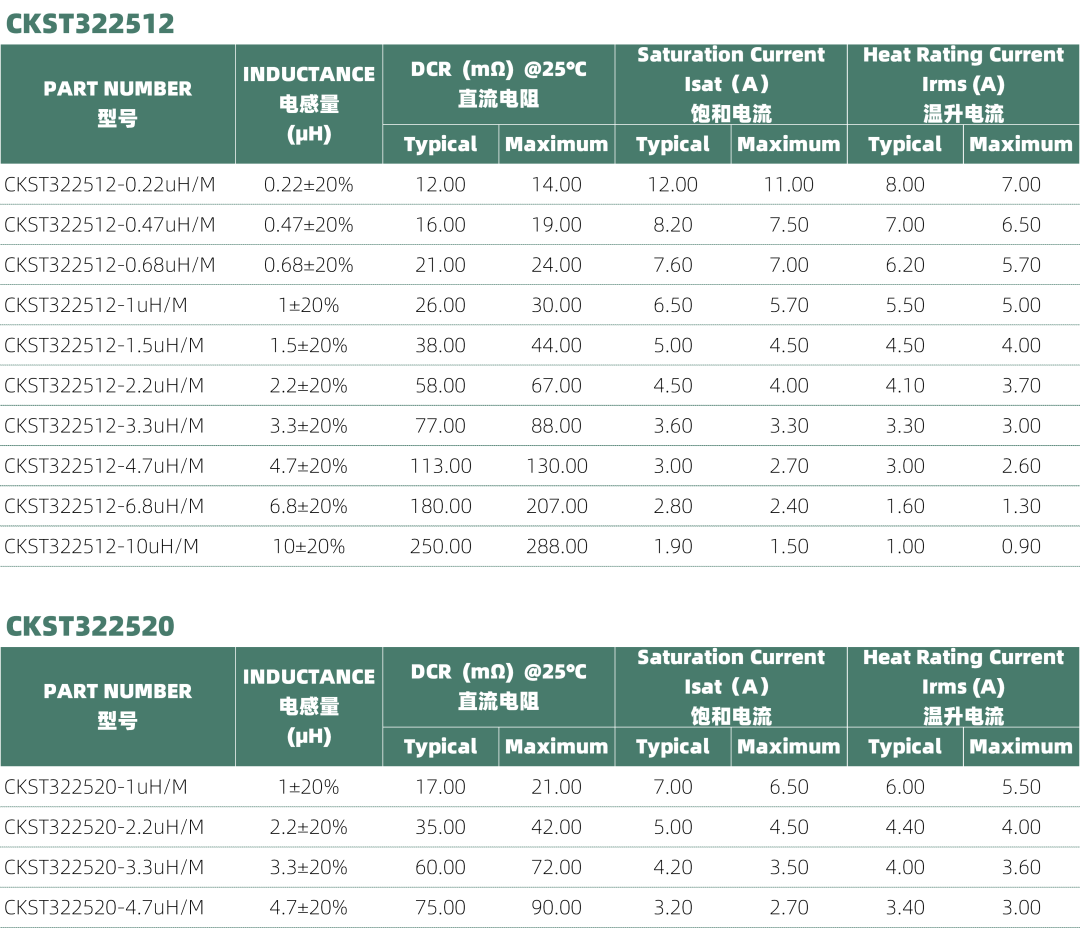

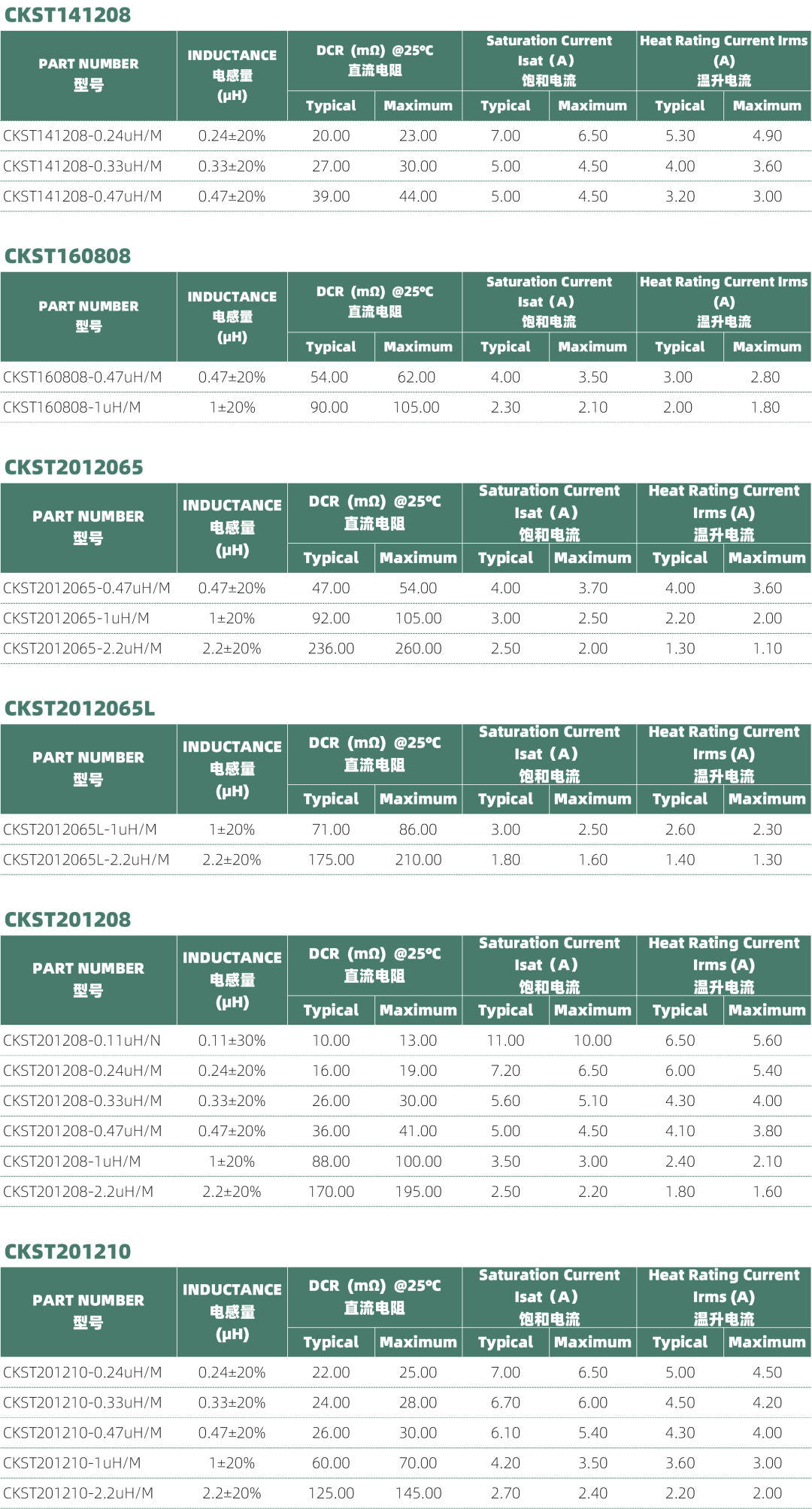

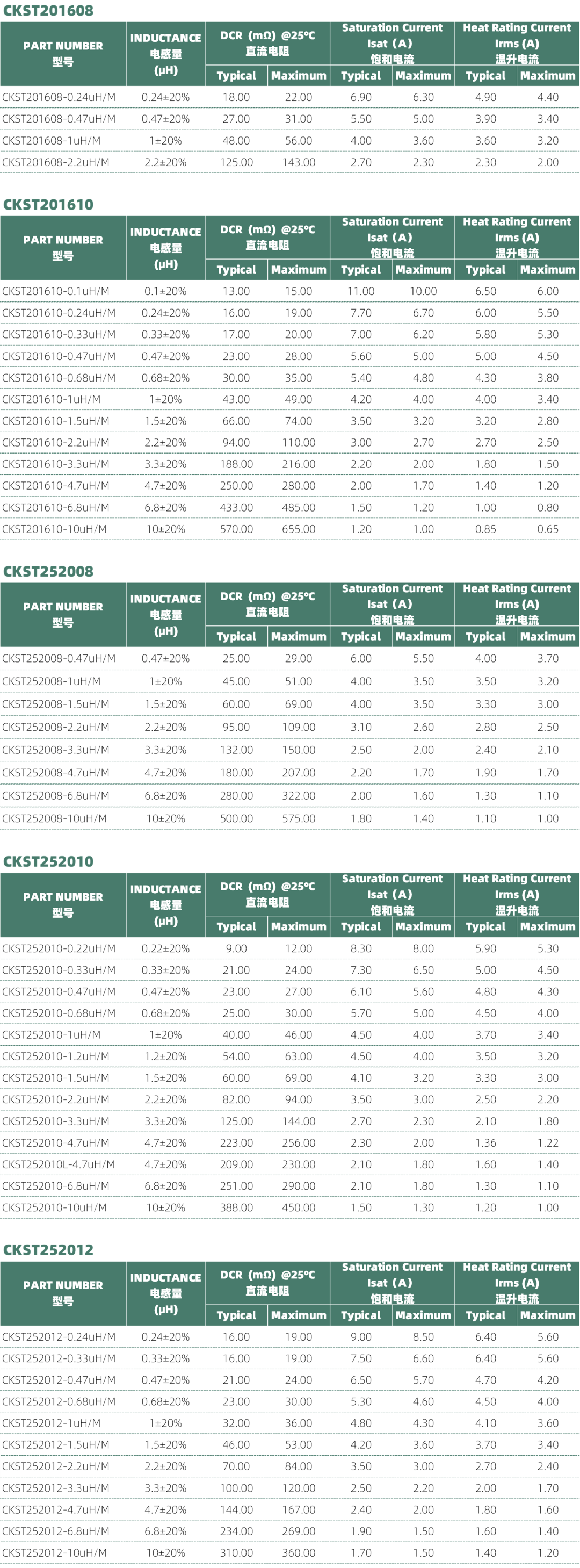

電氣特性
Remark
All test data is reference to 25℃ ambient.
Test Condition:1MHz,1Vrms
Isat: Max.Value, DC current at which the inductance drops less than 30% from its value without current;
Typ. Value, DC current at which the inductance drops 30% from its value without current.
Irms: For Max. Value, ΔT<40℃;for Typ. Value, ΔT is approximate 40℃.
Operat between temperature range -40℃ to +125℃(Including self - temperature rise)
Absolute maximum voltage: DC 25V
