采用低損耗高密度金屬粉材料
采用熱噴涂技術,電感表面致密性好
閉合磁路設計,更好的抗電磁干擾
高密度壓制成型,超高工作電流
扁平線繞制,超低直流電阻

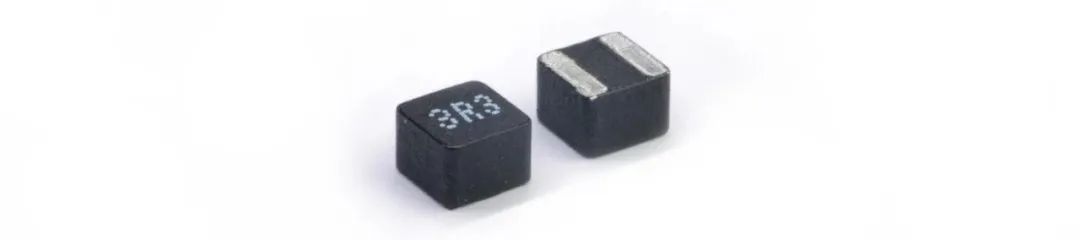

CKSTT0403
平板電腦,顯示器,服務器,主板,大功率DC/DC模組

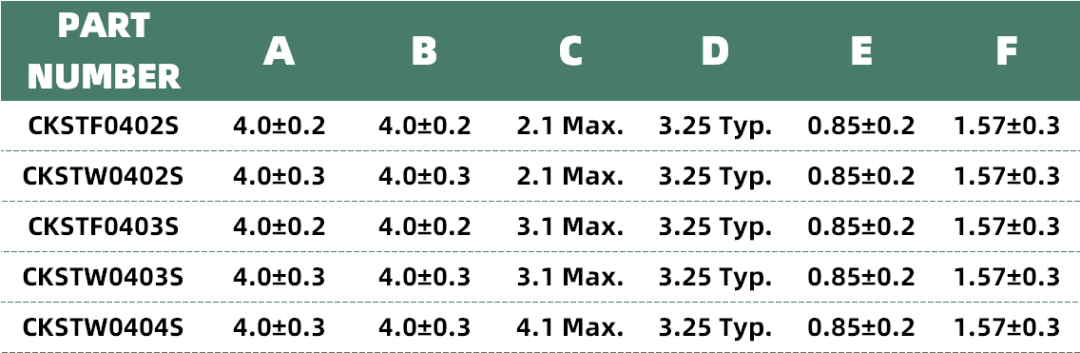

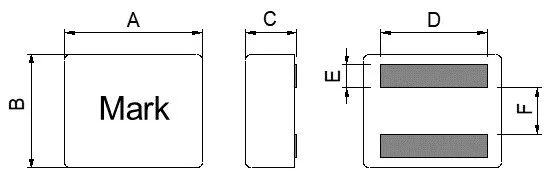

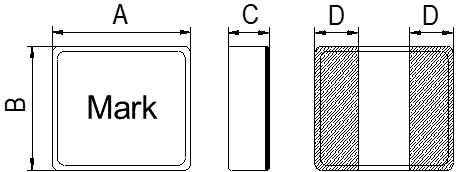

unit:mm

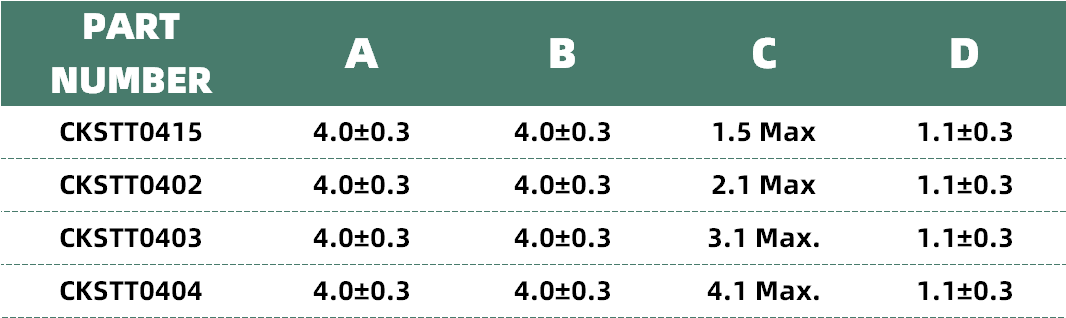

unit:mm

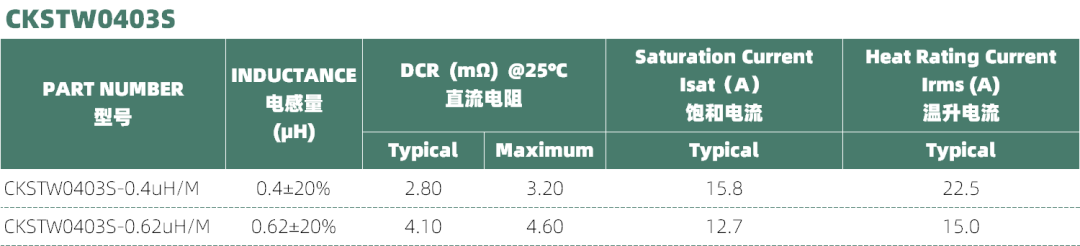

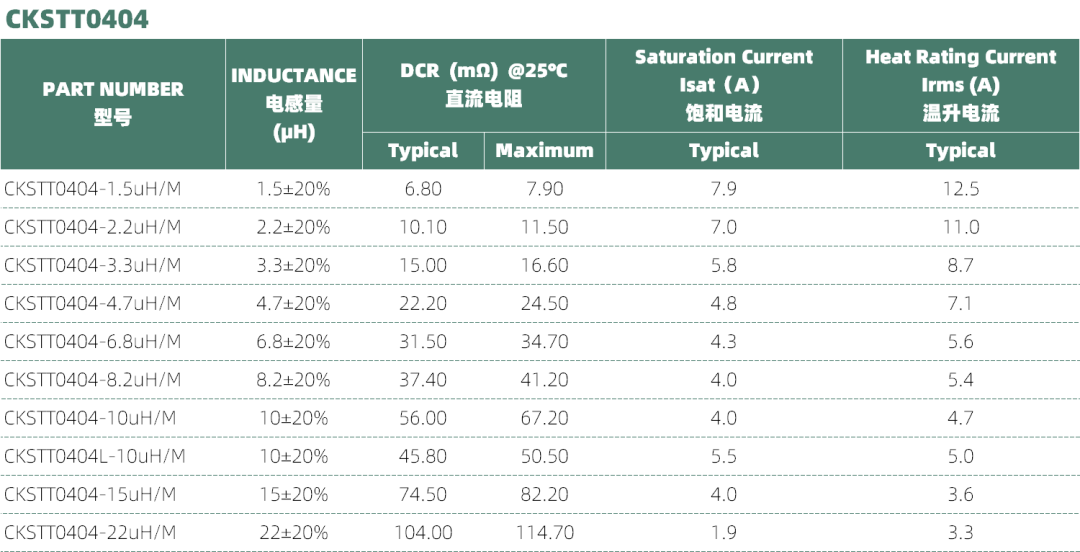

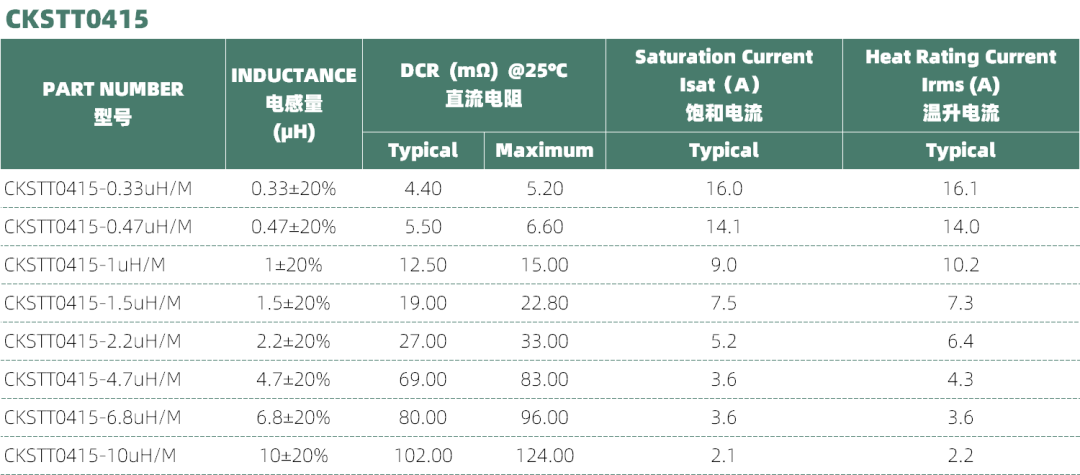

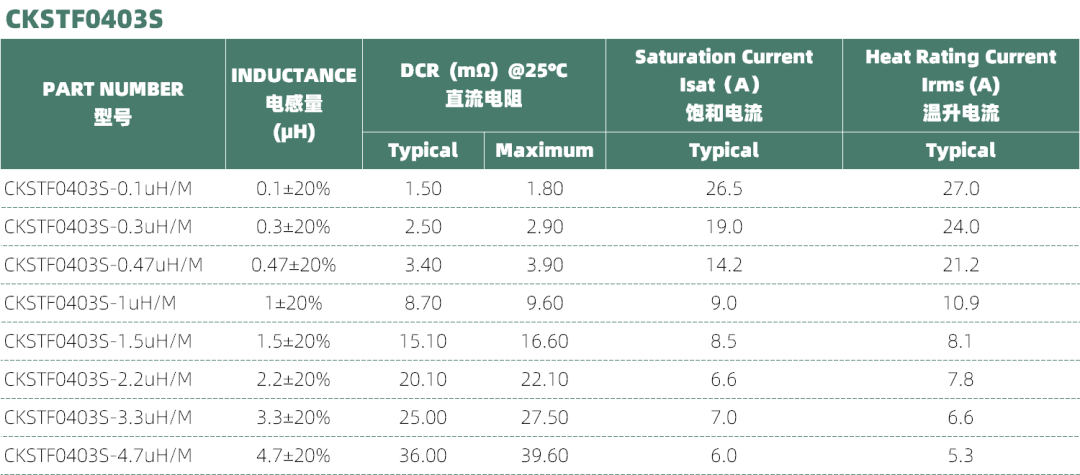

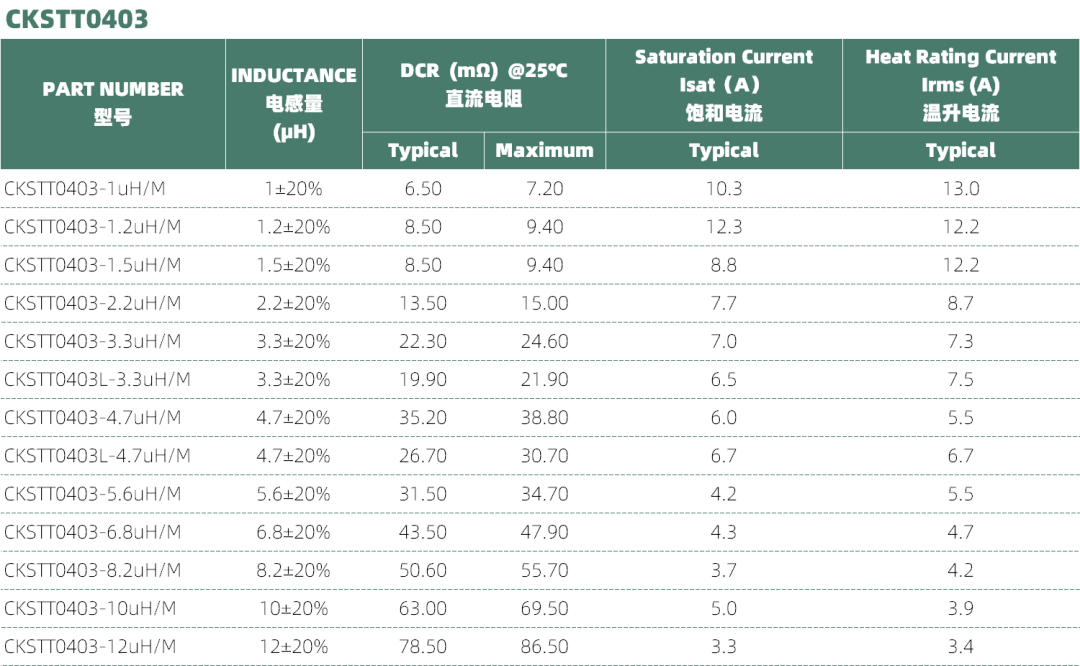

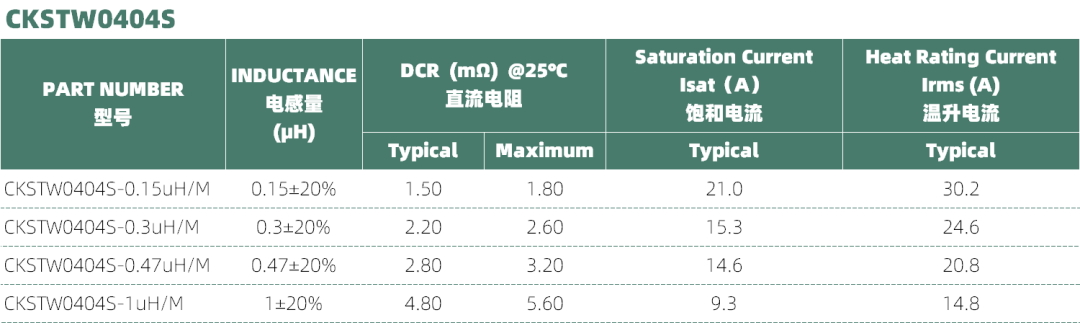

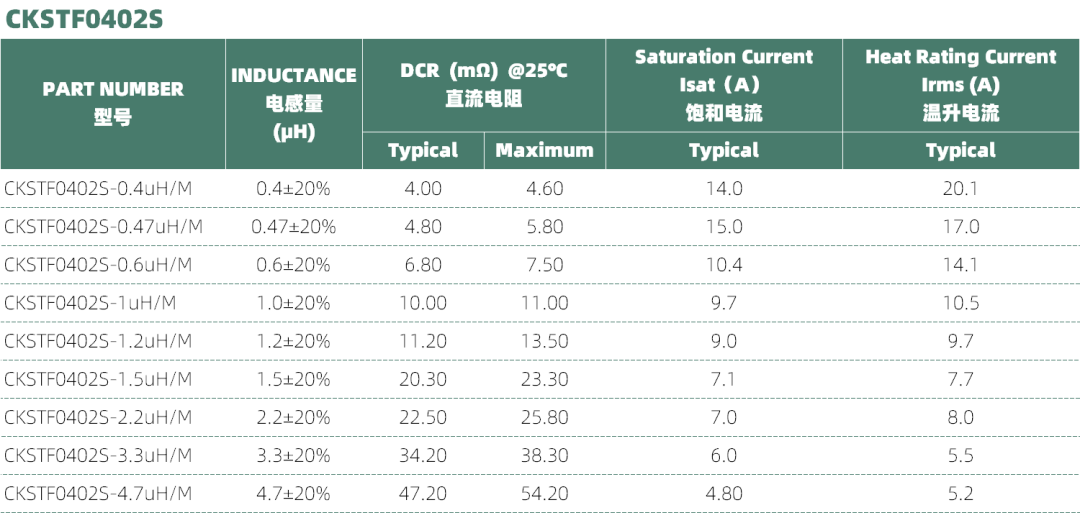

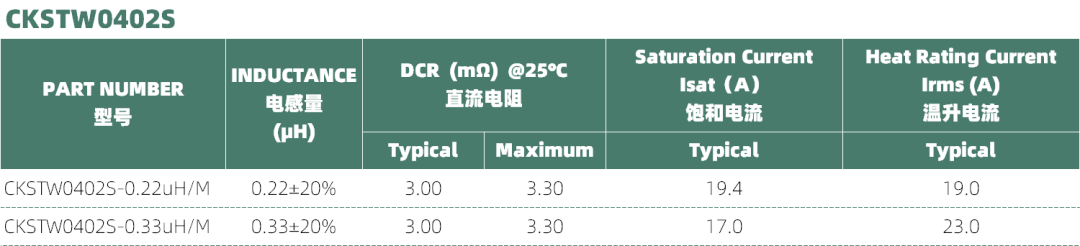

Remark:
1. All test data is reference to 25℃ ambient.
2. Test Condition:1MHz,1Vrms
3. Isat: Max.Value, DC current at which the inductance drops less than 30% from its value without current;Typ. Value, DC current at which the inductance drops 30% from its value without current.
4. Irms: For Max. Value, ΔT<40℃;for Typ. Value, ΔT is approximate 40℃.
5. Operat between temperature range -40℃ to +125℃(Including self - temperature rise)
6. Absolute maximum voltage: DC 60V
